10 x 140mm Mungo MB-ST Torx CSK Zinc Box 50

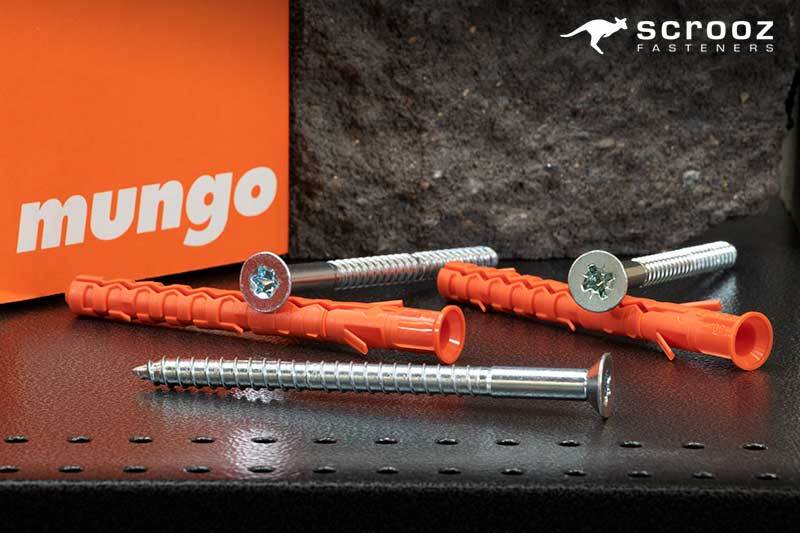

Mungo High Performance Premium Frame Anchors are a heavy duty screw paired with a PA6 nylon long expansion frame anchor sleeve. They are particularly recommended and suitable for use in hollow and or soft materials due to the full length split sleeve expansion which spreads the load over the full length of the anchor instead of the short expanding point load that most competitor anchors have.

Features:

• Quantity: 50
• Anchor Diameter: 10mm
• Drill Size: 10mm
• Length: 140mm
• Effective Anchor Depth: 70mm
• Anchor Material: Nylon Plug, Carbon Steel Screw
• Screw Diameter: 7.3mm
• Recommend Tension Load: 2.5kN
• Recommended Shear Load: 8.5kN

Get The Tech

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
