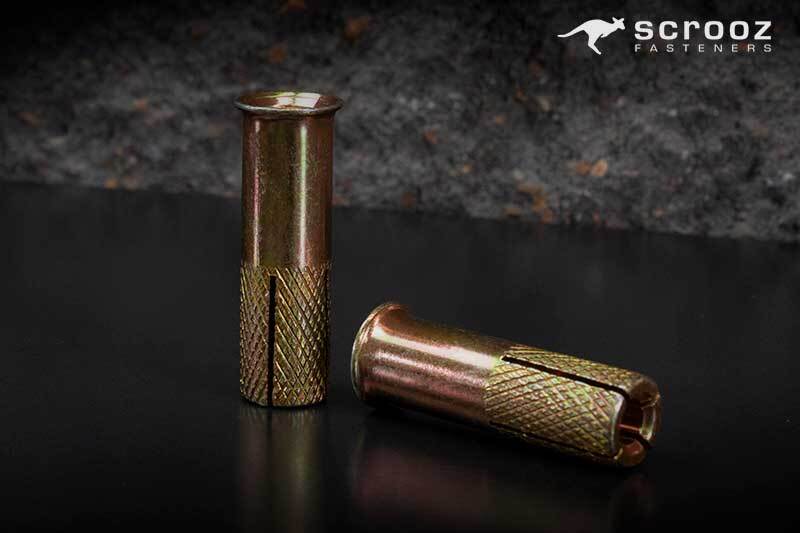

Drop in Anchors Lipped ETA 10 x 40mm Box 50

Professional grade drop in anchors are internally threaded anchors that provide quick and easy installation of any threaded fastener or rod into masonry, hard stone, and solid concrete.

Lipped drop-in anchors stop the anchor from slipping into the drilled hole and ensures the anchor mounts flush each time. Premium quality ETA approved bright zinc plate anchors for high strength construction and engineering fixing and bolting applications.

Features:

• Quantity: 50
• Internal Thread Diameter: M10
• Drill Size: 12mm
• Length: 30mm
• Effective Anchor Depth: 30mm
• Anchor Material: Carbon Steel - Bright Zinc Plated
• Max Thread Engagement: 15mm
• Recommend Tension Load 32 MPa: 4.6kN
• Minimum Spacing: 100mm
• Approvals: ETA OPt 7 / Fire Rates - Please contact us for current batch documents

Whilst great care is taken in compiling technical data on Scrooz Fasteners products, all information, recommendations, or suggestions regarding the use of such products are made without guarantee, since the conditions of use are beyond our control. It is the customer’s responsibility to ensure that each product is fit for the purpose for which they intend for it to be used and that the conditions of use are suitable. All load data is presented inclusive of safety factors. Technical data sheets with further detail are available for all our products upon request, at any time.
