Timber Insert Nuts M5 x 10mm Zinc Box 200

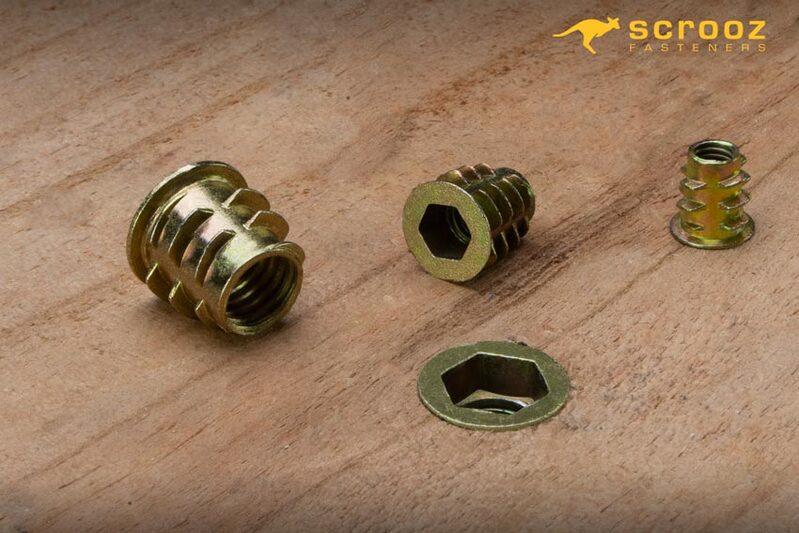

Timber insert nuts are strong, internal threaded timber inserts with flanged ends and coarse external wood threads for secure fastening into soft woods like pine, MDF, and plywood. Timber insert nuts have a strong resistance to pull-out due to torsion or vibration. The flange helps prevent splitting and over-insertion, while the hex socket allows for easy installation using a hex (Allen) key.

Features:

• Quantity: 200
• Internal Diameter: M5
• Length: 10mm
• Thread Length: 5.5mm
• Thread Pitch: 0.80mm
• Flange Diameter: 9.60mm
• Drive Type: Internal Hex 5mm
• Steel Grade: Mild Steel 4.6 Grade
• Finish: Gold Zinc Plate
